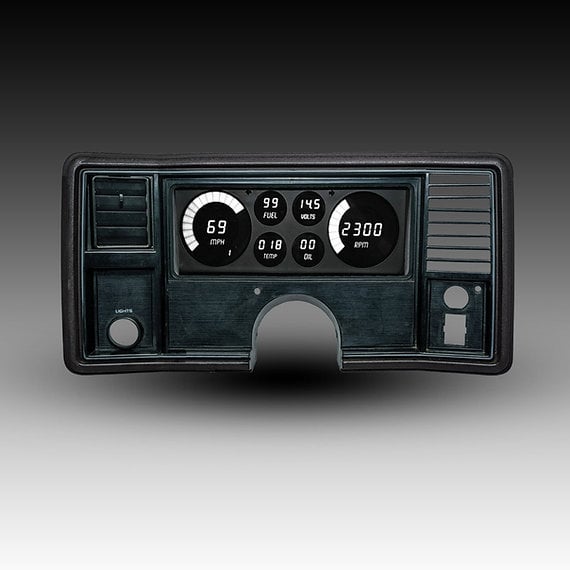

1977-1990 Impala Caprice LED Digital Replacement Gauge Panel - DP1211 Your 1977-1990 Impala and Caprice LED Digital Replacement Gauge Panel from Intellitronix will work perfectly with your 77-90 Impala and Caprice and will be the envy of all your friends. This creative gauge cluster comes complete with direct fit printed circuit boards, custom fit "smoked" plexiglass faceplate, universal temperature sending unit, oil pressure sending unit, and speedometer sending unit with sender and sensor for vehicles without electronic transmission or cruise control, and instructions for installation. Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration; regardless of tire size, gear ratio or transmission, 0-60 time with 1⁄4 mile elapse time plus high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013, universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control. Tachometer displays 0-9900 RPM in 100 RPM increments. Water Temperature displays 100-300°F range with the S8013 sender included. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead upon request. Please just add a note at check-out; otherwise, you will have to purchase the correct bushing on your own. Oil Pressure reads 0-100 PSI range and the oil pressure sender is included. Voltmeter displays 7.0-25.5 volt range and no sending unit is required. Fuel Level reads 0-99% range in 1% increments and works with existing GM fuel level sending unit. The 1968 Chevrolet Impala and 1968 Chevrolet Caprice with this elegant LED Digital Replacement Gauge Panel features turn signals and high beam indicator. Know Before You Buy! The 1977-90 Impala Caprice LED Digital Replacement Gauge Panel "does not" fit sweep style gauges! These gauges fit into separate gauge pods, so if your gauge cluster does not have separate gauge pods, “DO NOT” ORDER this product. If you have a LS engine, you may need metric to nonmetric adapters from for our sending units. If not included in your engine kit, you may have to purchase them separately. Your LS engine has a Tachometer output equivalent to a 4-cylinder, instead of 8-cylinder. Include a note in the comments when you check out as to which cylinder engine you have, so we can set the tachometer correctly. The tachometer is programmable, so you can set it yourself if needed. In addition, if you are using a LS engine you will need to order 8014LS Kit. Easy Install, Lifetime Warranty, Great Price & Gauges for your very special classic vehicle. BEZEL NOT INCLUDED FEATURES: AVAILABLE COLORS: White, Red, Blue and Green SPEEDOMETER READING: Order your speedometer in either MPH or KPH ACCESSORIES: All required sending and sensor units are included. Upgrade your setup with these premium features: GPS Speedometer Sending Unit: Accurate readings with a simple 3-wire hookup. Works with 4000, 8000, or 16000 PPM speedometers. Built-in GPS eliminates speed errors caused by tire or gear changes. Universal Gauge Harness: Designed for performance and professional appearance, this 8' harness includes color-coded wires, quick-connects for easy removal, and all hardware needed for gauge wiring. Includes connectors for: Water temp, oil pressure, tachometer, voltmeter, fuel level, speedometer, dash lights, turn indicators, and high beam indicator. LS Swap Kit: Perfect for GM engines, includes 12mm & 16mm bushings and a 10K-1/2 watt resistor.
