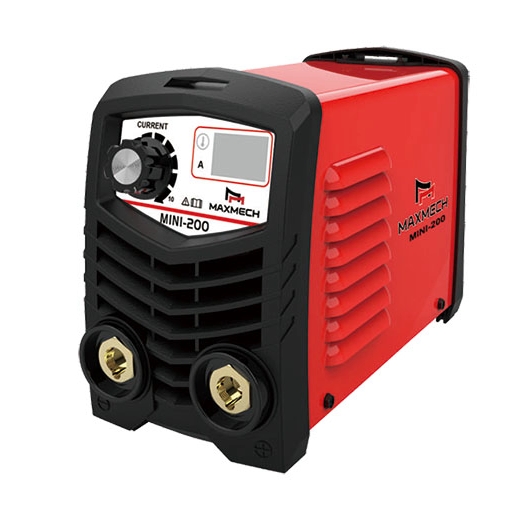

The Maxmech Inverter Welding Machine MINI-200AMP is a popular and portable welding solution, especially for those who need flexibility and ease of use. The “MINI” in its name highlights its compact size and light weight, which are significant advantages of inverter technology. The “200AMP” indicates its maximum welding current output. Here’s a detailed overview of its features, the welding processes it handles, and its availability and pricing in Kenya: Key Features and Specifications (Typical Model: MMA-200 or MINI-200): Welding Process: Primarily designed for Manual Metal Arc (MMA) welding, also commonly known as Stick Welding or Shielded Metal Arc Welding (SMAW). Some models might have basic TIG (Gas Tungsten Arc Welding) capabilities with a scratch start function, but it’s fundamentally an MMA machine. Welding Current: Up to 200 Amps. This range is suitable for welding various thicknesses of steel, including mild steel, carbon steel, stainless steel, and cast iron. It can typically handle electrodes from 1.6mm to 4.0mm (and sometimes up to 5.0mm for brief periods, depending on the duty cycle). Inverter Technology: Utilizes advanced IGBT (Insulated Gate Bipolar Transistor) inverter technology. This makes the machine significantly lighter, more compact, and more energy-efficient than older transformer-based welders. Inverter technology also provides a more stable arc, easier arc initiation, and better control over the welding process. Voltage: 220V-240V, 50/60Hz (standard single-phase power for Kenya). Duty Cycle: Often rated around 60% at its maximum output (e.g., 200A @ 60%). This means it can weld continuously for 6 minutes out of every 10-minute period at full power before needing a cool-down. This is a good duty cycle for most small to medium-scale jobs. No-load Voltage (Open Circuit Voltage – OCV): Typically around 60V-80V. A higher OCV aids in easier arc striking. Key Functions/Protections: Hot Start: Provides an initial surge of current to ensure easy arc ignition, especially with difficult-to-strike electrodes. Anti-Stick: Prevents the electrode from sticking to the workpiece, making it easier to restart the arc and reducing electrode waste. Arc Force: Helps maintain a stable arc, preventing it from extinguishing during welding, especially in challenging positions or with longer arc lengths. Overload Protection/Thermal Cut-off: Automatically shuts down the machine if it overheats, protecting internal components and extending the machine’s lifespan. Current Display: Often features a digital display to show the welding current. Portability: Weighs approximately 5.0kg to 8.0kg, making it very easy to carry around to different job sites or move within a workshop. Accessories: Usually comes with an electrode holder with cable, an earth clamp with cable, and sometimes a basic welding mask, chipping hammer, and wire brush.
