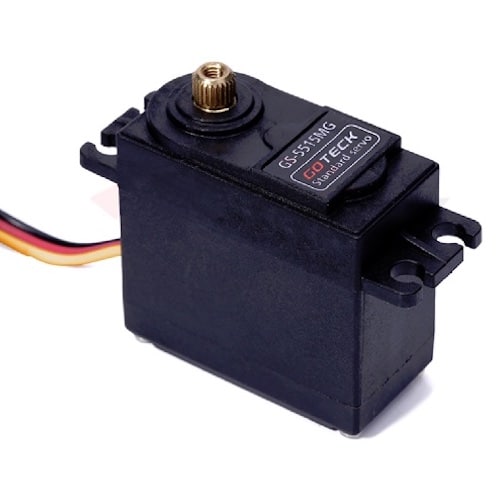

GS-5515MG Analog Servo CW 15kg (Clockwise rotation)

Specifications GS-5515MG Analog Servo CW Use 9v voltage regulator for batteries that are higher than 9V (3S batteries, for example). See the 9V regulator and wiring diagram for a Viper HERE. Parameter: Spec: Type: Analog, 60° (±10°) of rotation, can be modified for continuous rotation Direction: Clockwise is Pulse Travel 1500 to 1900 usec (so stick “Up” is clockwise) – If you need this servo to turn the opposite direction, simply reverse your transmitter channel Dimensions: 40mm x 40mm x 20mm (1.57″ x 1.57″ x 0.79″) Weight: 62g (2.19oz) Construction: All metal gears, double ball bearing See the below table for details of the GS-5515MG Analog Servo performance at different voltage values. GS-5515MG Analog Servo Voltage Performance Table Operating Voltage 4.8V 6.0V 7.4V 9.0V Speed: 0.31sec/60° 0.28sec/60° 0.24sec/60° 0.20sec/60° Stall torque: 13kg-cm 15kg-cm 18kg-cm 20kg-cm Stall (oz-in): (139oz-in) (173oz-in) (214oz-in) (250oz-in) Idle Current: 250mA 300mA 350mA 450mA Avg Current: 0.65A 0.8A 1.0A 1.2A Stall Current: 1.6A 1.8A 2.2A 2.6A
