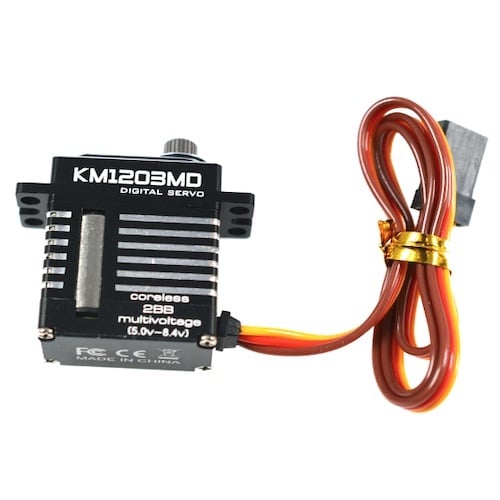

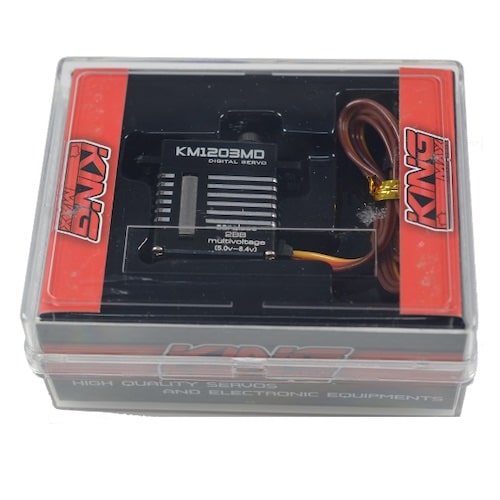

Specifications Kingmax KM1203MD High Torque 12mm Micro Servo Use 9v voltage regulator for batteries that are higher than 9V (3S batteries, for example). See the 9V regulator and wiring diagram for a Viper HERE. Parameter: Spec: Operating Speed (5.0V): 0.14sec/60 degrees at no load Operating Speed (6.0V): 0.11sec/60 degrees at no load Operating Speed (7.4V): 0.08sec/60 degrees at no load 0.08sec/60 degrees at no load Operating Speed (8.4V): 0.07sec/60 degrees at no load Stall Torque (5.0V): 6.0 kg.cm (102.78 oz/in) Stall Torque (6.0V): 7.4 kg.cm (102.78 oz/in) Stall Torque (7.4V): 9.5 kg.cm (131.95 oz/in) Stall Torque (8.4V): 10.5 kg.cm (131.95 oz/in) Potentiometer Drive: Direct Drive Dimensions: 23X12X27.5 mm /0.91 X0.47X1.07 in Weight: 20.3 g (0.72oz) Connector Wire Length: JR320 mm (12.48in) Packing Detail: Transparency plastic box size: 83.5mm x 63.5mm x 37.5mm Transparency plastic box weight: 80g
