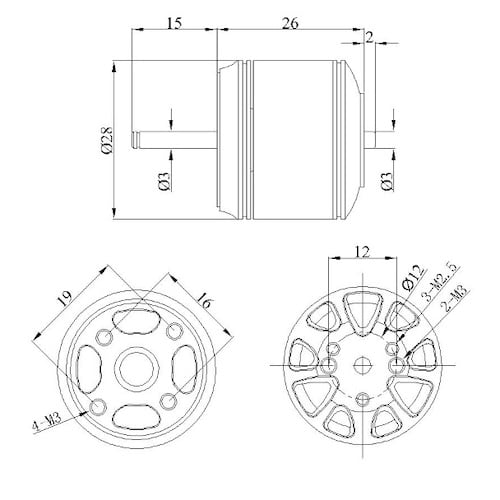

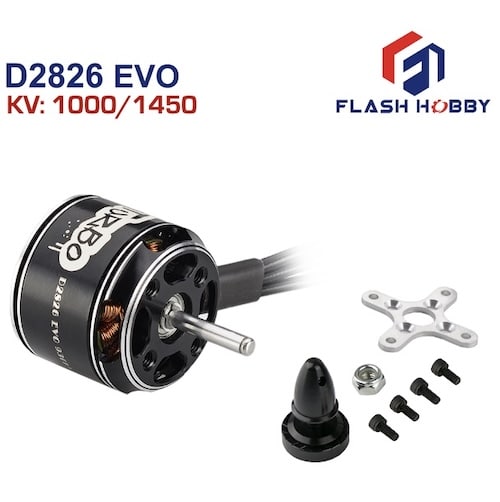

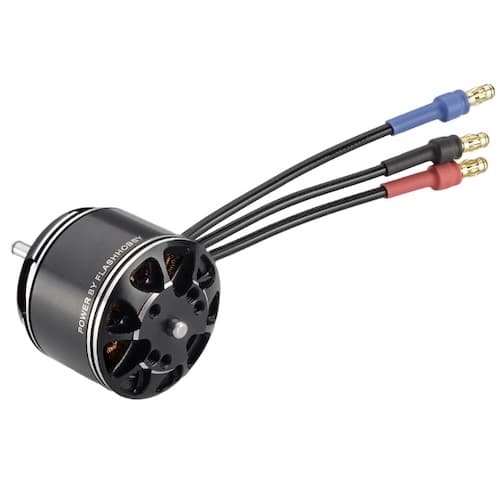

D2826EVO Brushless 1000KV Combat Robotics Weapon Motor If you’re running a standard D2826 and want more, the D2826EVO is your next motor. The Flashhobby D2826EVO Brushless 1000KV combat robotics motor shares the same 16×19mm mounting pattern as the standard D2826 — so it drops into the same chassis — but brings a redesigned 12N14P stator, 4S capability, and significantly more power to the fight. Why the D2826EVO? At 3S the EVO delivers similar performance to the standard D2826 — but push it to 4S and it’s a different motor entirely. Max power jumps to 292W, max thrust hits 1111g, and max current reaches 18.43A. Flashhobby’s in-house EVO redesign — tighter 12N14P stator configuration, 3.0mm shaft, and a slightly heavier but more robust 55.7g can — is built for builders who need more headroom. Check your design carefully for 4S ESC and battery compatibility before upgrading. EVO vs Standard D2826 — At a Glance Specification D2826 1000KV D2826EVO 1000KV Max Voltage 3S (11.1V) 4S (14.8V) Max Current 13.8A 18.43A Max Power 150W 292W Max Thrust 660g 1111g Shaft Diameter 3.17mm 3.0mm Weight 50g 55.7g Stator Config — 12N14P Mounting Pattern 16×19mm, M3×4 16×19mm, M3×4 What’s in the Box The D2826EVO ships with common mounting hardware. You’ll get the motor, four M3×5 mounting screws, a cross mount, and an adapter. Additional mounting options include the Fingertech blade mount for a direct weapon connection, the Fingertech angled motor mount for ease in mounting the motor to the chassis, and Fingertech pulleys and belts for a belt-drive connection to the motor. Note that the EVO’s 3.0mm shaft differs from the standard D2826’s 3.17mm shaft — verify shaft compatibility with your hardware before ordering. ESCs Given the D2826EVO’s higher current draw — particularly at 4S — we’d suggest a 40A ESC as a minimum. Good options include the Flashhobby Aria 40A BLHeli, the Flycolor Francy 2 50A BLHeli for additional headroom, or the E-Power Aria 70A AM32 if you’re running 4S hard and want plenty of overhead. Each robot is different — make sure you match your ESC to the requirements of your design. Specs at a Glance Shaft is 3.0mm diameter × 41mm length with a standard 16×19mm mounting pattern (M3×4 thread). Max current is 18.43A, internal resistance 0.137Ω. Stator configuration 12N14P, stator diameter 22mm × 8mm height. Operating temperature range 0°C–80°C. It’s a tough, no-excuses motor built for the arena.
