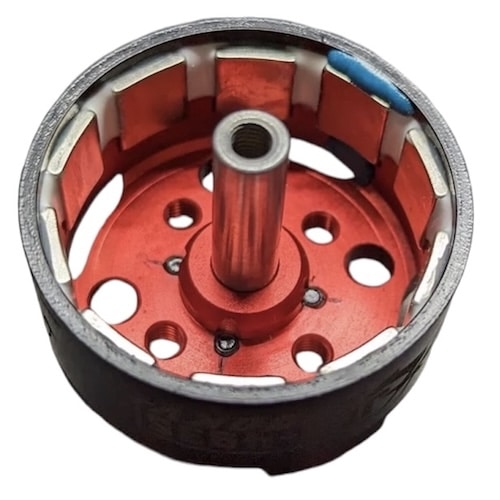

Specifications Specification Value Dimensions 49mm diameter, 26mm height without shaft; 45mm height including shaft Accepts Stator Size Roughly 40 x 12mm (About 70% larger than 3536 can motors) Weight 95 grams (3.4 oz) Bearings N/A KV N/A Voltage N/A Mounting Mounting available on two sides: 1) 4X M5 plus 4X 06.05mm [0.24″] holes for pressed in dowel pins for shear strength, and 2) 4X M3 Features Feature Description Circlips, Belts, or Set Screws None Magnets Super strong neodymium magnets Magnets and Stator Coils Epoxied for extra durability ItGresa Robotics is proud to support the builder community by offering and marketing their products. Just ‘Cuz Robotics has quickly become known for both incredible product innovation and technical support for the community through their great videos. We are proud to be one of the very first distributors to partner with them and help bring their incredible products to a broader market. Warning: combat robots are not toys! They are extremely dangerous. See this safety video. Testing a robot with an active spinning weapon should never be done while maintaining a line of sight with the robot. Ideally, you should be testing inside an enclosed box or arena with at least 1/4″ thick polycarbonate windows or top to see through, and 1/2” or thicker plywood or MDF construction. Operation (Including testing) outside of a suitable arena or test box could cause serious injury. By purchasing this product you acknowledge that you are responsible for the safe use of this product and that Team Just ‘Cuz Robotics, ItGresa Consulting Group Inc d/b/a ItGresa Robotics or their employees are not liable for any injuries or damages.
