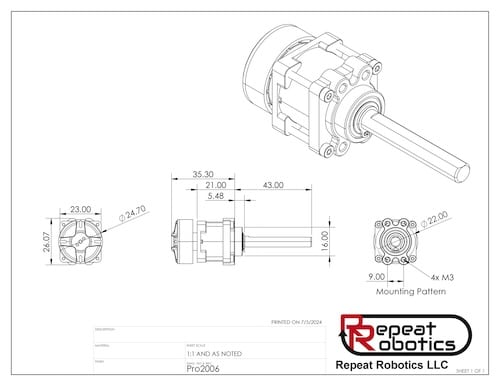

Specifications The new Repeat Drive PRO Brushless Gearmotor is here. After dominating the antweight game with the Repeat Drive Mini Mk2 Brushless or the Repeat Drive Brushed, you can now dominate the beetleweight game. Want more speed and power? Want increased reliability? Look no further! Repeat Drive PRO Brushless Gearmotor Features: Custom wound 2006 brushless motor. 6mm “D” extra long output shaft (cut to the length that you need to save weight) “D” groove on shaft for setscrew purchase. Output shaft c-clip has been changed to minimize the groove and provide the strongest product. Custom billet 4130 final planet carrier and output shaft. Custom square M3 facemount hole pattern (9mm apart, 22mm hole circle (~9x20mm rectangle)) Comes ready for combat, just solder the motor leads to a brushless ESC and you’re on your way (Soldering iron required) Item Specifications Length: 78.3mm including 37.5mm shaft (3.1in including 1.5in shaft) Motor Diameter: 24mm (0.94in) Gearbox Diameter: 23mm x 26.07mm (0.91in x 1.0in) Weight: 64.5g (2.3oz) Shaft: 6mm diameter hardened steel with D-flat for setscrews. Ratio: 27:1 all-metal planetary gearbox. KV: 2500KV 2-4S Voltage: 2500kv Recommended ESC: Repeat Robotics ESC with Reverse Mounting holes: 4x18mm M2 face mount hole pattern Note: Brushless drive motors must be used with a reversing ESC or your bot can’t go backwards. Perfect for the job is Repeat Robotics Reversing Brushless ESC, designed specifically for the Mk2 motors. These motors are designed to be used in combat, where anything can happen. The manufacturer is unable to accept returns for battle damaged products. ItGresa Robotics is proud to support the builder community by offering and marketing their products. Repeat Robotics is run by a builder who is offering these motors to make the combat robotics scene in the US more competitive.
