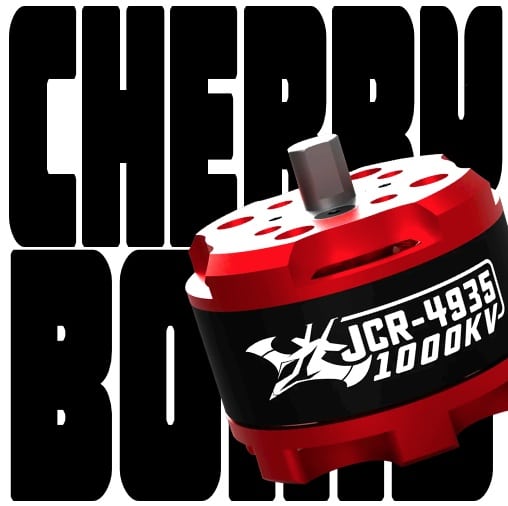

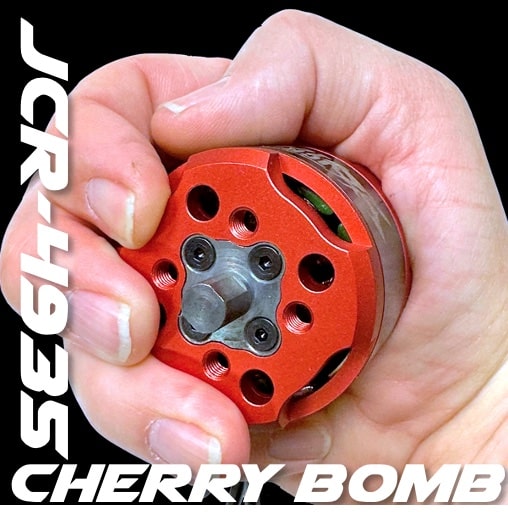

Just Cuz Robotics JCR-4935 “Cherry Bomb” Brushless Motor

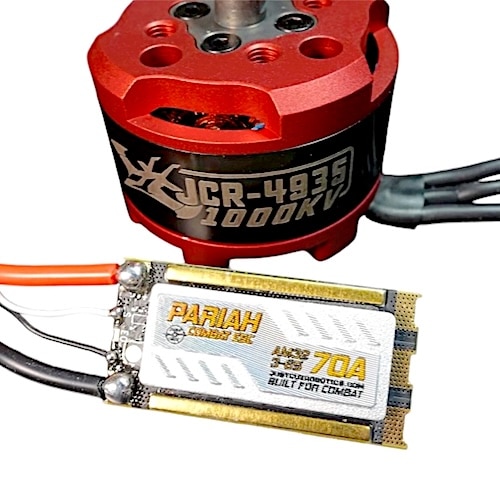

Specifications Dimensions: 49mm can diameter, 35.5mm can length Stator Size: Roughly 40 x 12mm (About 70% larger than 3536 can motors) Weight: 213 grams (7.5 oz, 0.47 lb) KV: 1000kV Voltage: 3S-6S with appropriate ESCs Power and Current: See the below chart for empirical test data 6X M5 bolts for mounting to your robot frame 4X M3 on 25mm circle as alternative ‘compatibility’ mounting 4X M5 bolts and 4X 6mm dowel pin holes to attach weapons, gears, pulleys, or whatever else you can think of 4140 Alloy steel 8mm billet flanged shaft, hardened to 46-48HRC Just Cuz Robotics JCR-4935 “Cherry Bomb” Brushless Motor Features: No circlips or set screws! Super strong, curved neodymium magnets Epoxied magnets for extra durability High-temperature copper windings, 14AWG silicone wires rated to 200 C Large 698 and 688 bearings to support the shaft M5 button head bottom shaft attachment Experimental bench test data using 70A ESC Usage Notes: NOTE: Cherry Bomb’s specs are not precisely known because this is a custom motor. Cherry Bomb should be mated with a 50A or greater rated ESC. This has been tested and working with 70A BlHeli32 and AM32 ESCs, 45A Tekko45, and a few others. More testing is still in the works. Actual current draw and torque are highly dependent on your exact ESC and configuration, battery, voltage, and loading. Air resistance and tip speed for your weapon play a huge role in the current draw of your system. Even reducing speed by 20% might cut air resistance in half. ItGresa Robotics is proud to support the builder community by offering and marketing their products. Just ‘Cuz Robotics has quickly become known for both incredible product innovation and technical support for the community through their great videos. We are proud to be one of the very first distributors to partner with them and help bring their incredible products to a broader market.
