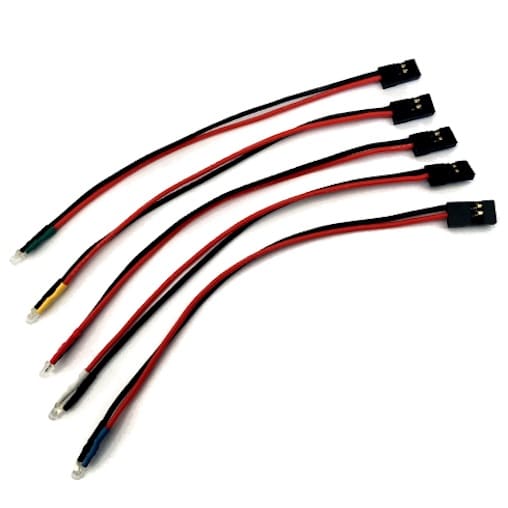

Specifications Robot Power LED Power LED Specifications: Specification: Values Voltage: 3mm Superbright LEDs have built-in resistors for operating at 3-12V. (Most receivers will be at 5V.) Colors: Red, Blue, Green, and multicolor – heat shrink indicates LED color. (Multicolor heat shrink is gray.) Length: 15cm of 20gauge wire Panel-mount Clip hole diameter: 15/64in or 6mm drill bit Panel-mount Clip panel thickness: 1.6mm (0.0625in) max (thicker panels can be counter-bored to the right size) Weight: 2.3grams (0.08oz) Installation: Drill a 15/64in (or 6mm) hole in your panel. If the panel is thicker than 1/16in (1.6mm), use a larger drill bit to counterbore the material down to the proper thickness. Insert the Clip into the panel. Press the LED into the Clip until it clicks. Plug connector into your receiver (black Ground wire towards the outside of the case).
