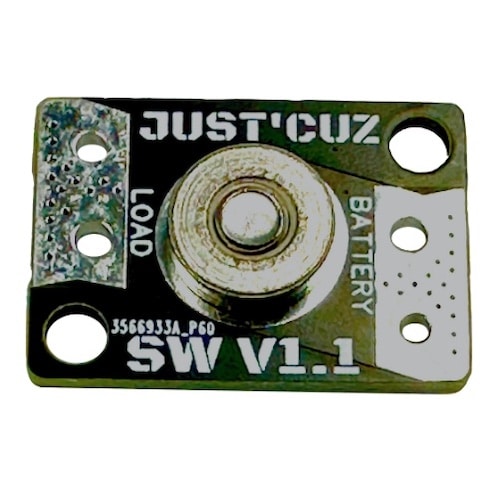

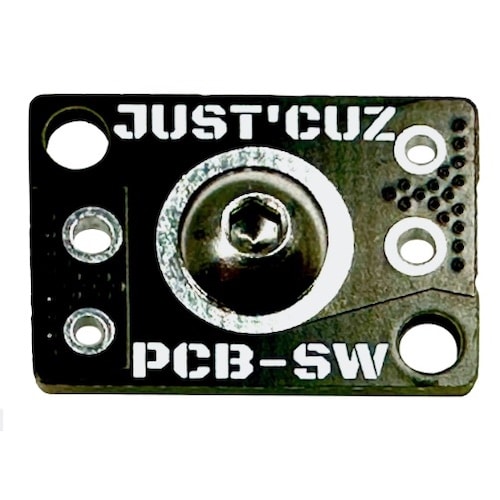

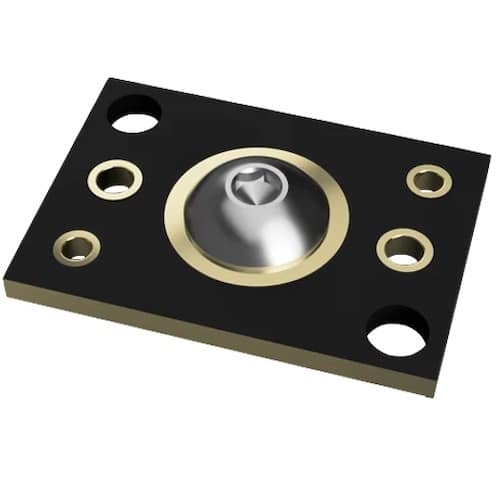

Specifications Just ‘Cuz Robotics PCB Switch v1.1 Parameter Spec Length 23mm, 0.90″ Width 16mm, 0.63″ PWB Thickness 1.6mm, 0.06″ Weight 3.01 g, (0.11 oz). Just ‘Cuz Robotics PCB Switch v1.1 Features: M3 or #4 screw through-hole mounting locations Massive solder pads on rear for easy flat connections Plated through-holes sized for #16 and #14 wire (smaller or larger gage is still super easy to use) Included and preinstalled 8-32 tin-plated press nut (solder this to the surrounding copper to create better surface contact!) CAD files available here Important Safety Notes: WARNING: The bottom of the board has exposed copper regions that, if in contact with a conductive surface, can short circuit and bypass the switch. The top/front of this board is the intended mounting face. WARNING: If securing this board directly to a metal plate, allow appropriate clearance with an insulating spacer around the switch screw and exposed copper pads on the top. The two provided mounting screw points (non plated holes) will not electrically connect to the circuit. These regions are exposed to allow easy soldering to the underside of the board, but they are separated for a reason! WARNING: Operation with a battery at a higher voltage than 6S without an appropriate precharge resistor, or drawing too much current without added cooling, may result in damage to the switch. WARNING: While this PCB is designed to safely operate inside a combat robot, it may get very hot. Touching it during, or shortly after operation, can result in serious burns. In the unlikely case where you have difficulty turning off the switch while it is hot, waiting 30-60 seconds for it to cool should resolve the issue. WARNING: Testing a robot with an active spinning weapon should never be done while maintaining a line of sight with the robot. Ideally, you should be testing inside an enclosed box or arena with at least 1/4″ thick polycarbonate windows or top to see through, and 1/2” or thicker plywood or MDF construction. Operation (Including testing) outside of a suitable arena or test box could cause serious injury. By purchasing this product you acknowledge that you are responsible for the safe use of this product and that Team Just ‘Cuz Robotics or its employees are not liable for any injuries or damages. WARNING: This product, and all other Just ‘Cuz Robotics products, are intended for use in hobby projects, and for educational and experimental uses. These devices are not suitable for any application where human life or health or significant property value depend on their proper operation. Just ‘Cuz Robotics, LLC and ItGresa Consulting Group, Inc. d/b/a ItGresa Robotics are not responsible for any loss or damage incurred by the operation or failure of this product or any others. The specifications listed are accurate to the best of our knowledge but are not guaranteed in any way. The buyer assumes all responsibility for proper use, testing, and verification of this unit in any application. Just ‘Cuz Robotics, LLC’s and ItGresa Consulting Group, Inc’s liabilities are limited to replacement of defective DOA units. By installing and using this unit you are agreeing to these terms. If you do not agree you may return any unused units for a refund.
