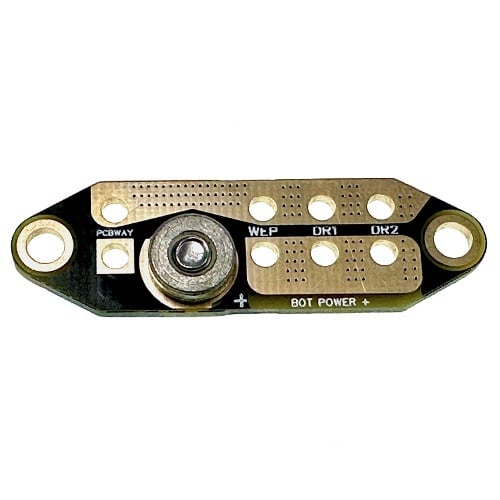

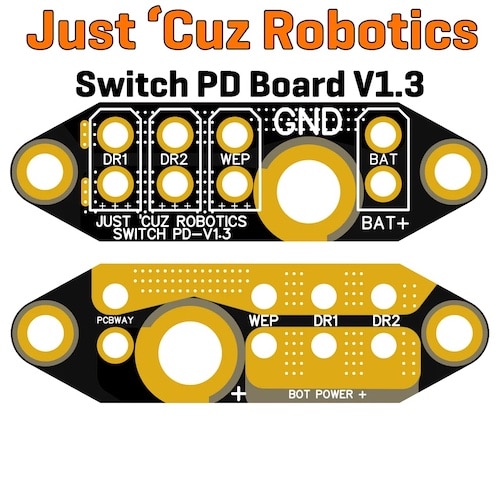

Specifications Switch Power Distribution Board Parameter Spec Length 14mm, 0.56″ Width 48mm, 1.89″ Thickness 1.6mm, 0.065″ Weight 7.5g, (0.27oz) ea. Included as part of the assembly: Qty 1 Power Distribution/switch board Qty 1 Tin plated steel #8-32 press insert nut, pressed into the power switch hole Qty 1 #8-32 Button Head Screw for the power switch Switch Power Distribution Board Features: 3/32″ hex drive. 3/32″ matches Fingertech mini switches, no need to have two different tools to turn on different bots. Convenient, electrically isolated mounting screw holes to hold down the board or attach a cover. Clearance for M3, #6-32, or #6 plastite screws! Convenient mounting points for up to four XT30 or XT30U connectors! Battery, Weapon, and two drive sides or other devices. Clearly marked orientation for connectors to avoid reverse polarity ruining your parts. Use any connector or combination of direct soldering and connectors. Built-in screw switch to disconnect battery voltage from all devices (tested at 32A for 3.5 minutes, 50A for 30 seconds). When the screw is tightened, this connects battery positive to all other connector positive terminals. Can connect as many other devices as you wish to the copper pads under the board – no need to use just four! Clear labels for all components and pins for easy assembly and troubleshooting. Extra pads on top to connect a BEC or other auxiliary devices. Massive copper pads on both sides for increased current-carrying and heat dissipation.
