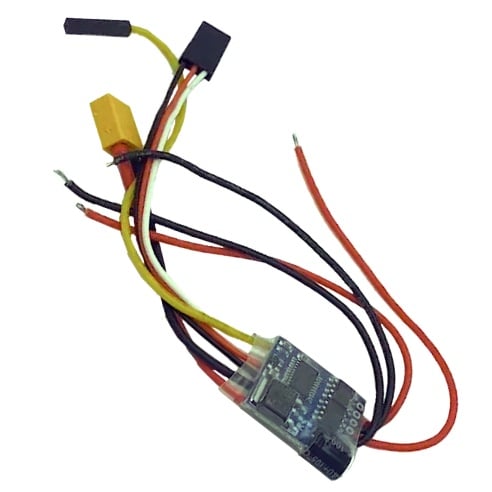

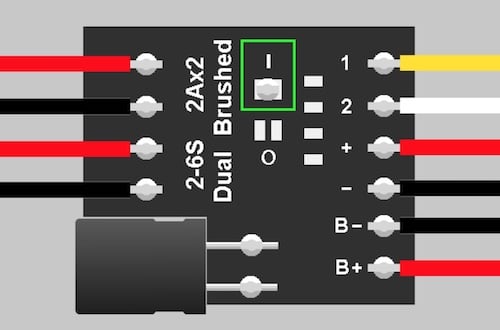

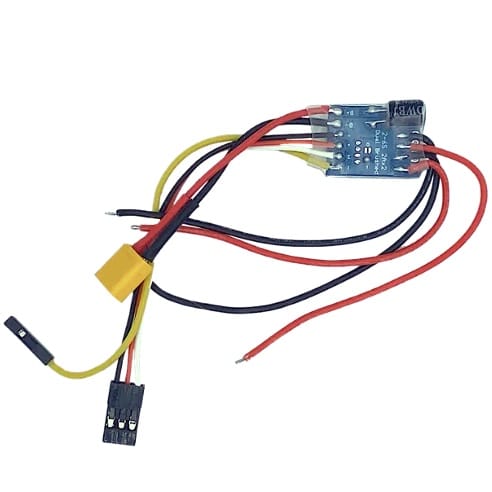

Specifications The Repeat Robotics Dual ESC, designed explicitly for the RR Brushed 16mm motor is a great way to manage weight, performance, and simplicity for your antweight bot. Although they are designed for use with our Repeat Brushed motors, these ESCs should also be able to drive most off-the shelf Antweight brushed drive motors. Repeat Robotics Dual ESC Features: Item: Specifications: Rated Voltage: 2S-4S. Max: 6S (Not recommended) Current: 2A Continuous Firmware: Board Length: 24mm (0.925in) Board Width: 18mm (0.71in) Board Thickness: 5mm (0.2in) Weight: 7g with wires (0.25oz) BEC on board: YES Features: Center braking for better motor control. Failsafe stops motors when signal is lost Auto adjusts to PWM values between 800-1100μs for reverse and 1900-2200μs for forward Mixing: Built in on board Disabled by default Enable by cutting the jumper near the i on the back of the board See board diagram for location marked in GREEN BEC: Integrated 5V 1.5A BEC output BEC can power servos on 2-3S BEC can power receivers on 2-4S BEC should not be used for servos on 4S BEC should not be used above 4S (cut red wires from CH1 servo connector) Connectors: Pre-soldered Power: XT30U connecter to connect to a battery or power distribution board CH 1 Signal: Single pin signal connector CH 2 Signal: Three pin servo connector for Ch2 / 5v(BEC) / GND These ESCs are designed to be used in combat, where anything can happen. The manufacturer is unable to accept returns for battle damaged products. ItGresa Robotics is proud to support the builder community by offering and marketing their products.
