CI10, CA2, 10HP CAST IRON 2 STAGE AIR COMPRESSOR PUMP V-4 PISTON
$30.01
$57.02

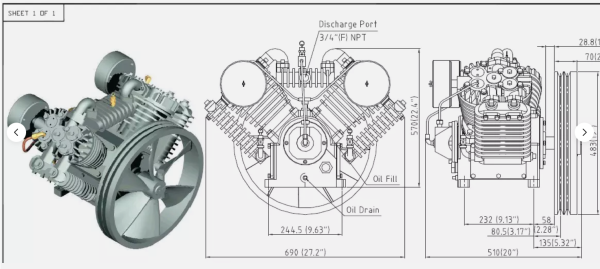

Description 10 HP TWO STAGE SPLASH LUBRICATED COMPRESSOR BARE PUMP THIS PUMP DOES NOT HAVE HEAD UNLOADERS. IT IS DESIGNED FOR START/STOP OPERATION. CAP# 01CJ-MA-707 Pump Design 2 CYLINDER 4 PISTON CAST IRON PUMP W/ SERVICEABLE VALVES FROM TOP OF THE HEAD. PRECISION TYPE CONNECTING RODS W/ REPLACEABLE INSERTS. CENTRIFUGAL UNLOADER FOR LOADLESS STARTING. THIS PUMP IS A CLONE OF THE SAYLOR-BEALL MODEL 707. IT WAS USED ON MANY BRANDS OF AIR COMPRESSORS – INDUSTRIAL AIR, INDUSTRIAL GOLD, SANBORN. THIS PUMP CAN RUN BE RAN WITH A 7.5 HP MOTOR WITH A PUMP SPEED OF A 600 RPM. Specifications • 10 Horsepower • Displacement: 46 SCFM • 4 Cylinder • 35 CFM at 175 PSI • Two stage • 805 RPM max • 175 PSI max • Cast iron • Cooling fan/pulley • Outlet Port 3/4″ NPT • 19″ pulley – 2 groove B belts • Mounting Pattern (Center to Center): 9-1/4″ Deep x 9-1/2″ Width • Overall Dimensions (At Widest Points, Including Flywheel): Width: 27″ x Depth: 20″ x Height: 28″ • Shipping Weight: 335 lbs
