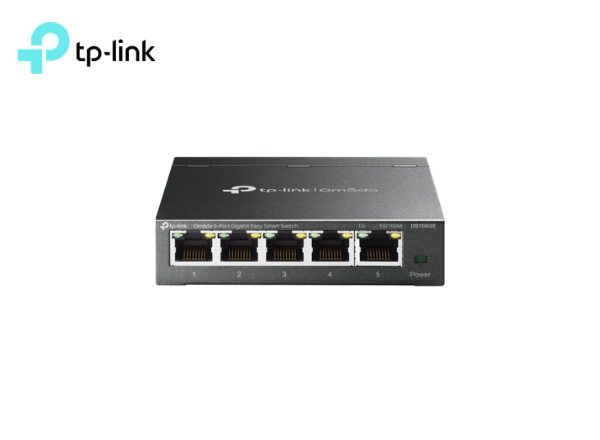

Description Model: DS105GE TP-Link DS105GE Omada 5-Port Gigabit Easy Smart Switch | T18 Overview 5× 10/100/1000Mbps RJ45 ports Plug and play for instant connectivity Simple configuration via web-based user interface and management utility* Durable metal casing of superior quality and professional appearance Green technology reduces power consumption Note: This Omada Easy Smart switch does not support Omada SDN central management. Specifications HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p Interface • 5× 10/100/1000 Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter (Output: 5 VDC/ 0.6 A) Dimensions ( W x D x H ) 3.9 × 3.9 × 1.0 in. (100 × 98 × 25 mm) Max. Power Consumption 2.82 W (220 V/ 50 Hz) Max. Heat Dissipation 9.62 BTU/h PERFORMANCE Switching Capacity 10 Gbps Packet Forwarding Rate 7.4 Mpps MAC Address Table 2 K Packet Buffer Memory 1 Mb Jumbo Frame 16 KB SOFTWARE FEATURES Quality of Service • Port/802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control L2 Features • IGMP Snooping • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention VLAN • Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) • MTU/Port/Tag VLAN Transmission Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Content • DS105GE • Power Adapter • Installation Guide System Requirements Microsoft® Windows® for running Utility Environment • Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing Related
