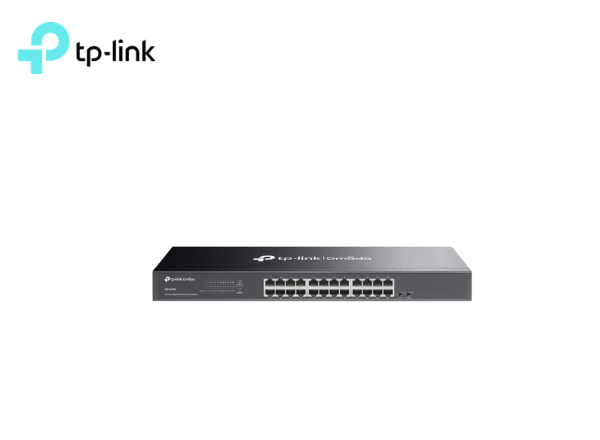

Description Model: DS1024GE TP-Link DS1024GE Omada 24-Port Gigabit Easy Smart Switch Overview 24× 10/100/1000Mbps RJ45 ports Provides network monitoring, traffic prioritization and VLAN features Plug and play for instant connectivity Simple configuration via web-based user interface and management utility* Durable metal casing of superior quality and professional appearance Green technology reduces power consumption Note: This Omada Easy Smart switch does not support Omada SDN central management. Specifications HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p Interface • 24× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Physical Security Lock No Power Supply 100-240VAC, 50/60Hz Dimensions ( W x D x H ) 17.3 × 5.5 × 1.7 in (440 × 140 × 44 mm) Mounting Rackmountable Max. Power Consumption 13.66W (220V/50Hz) Max. Heat Dissipation 46.58 BTU/h PERFORMANCE Switching Capacity 48Gbps Packet Forwarding Rate 35.7Mpps MAC Address Table 8K Packet Buffer Memory 4.1Mbit Jumbo Frame 10KB SOFTWARE FEATURES Quality of Service • Support Port-based/802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control L2 Features • IGMP Snooping • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention VLAN • Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) • MTU/Port/Tag VLAN Transmission Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Content • DS1024GE • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet System Requirements Microsoft® Windows® for running Utility Environment • Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing Related
