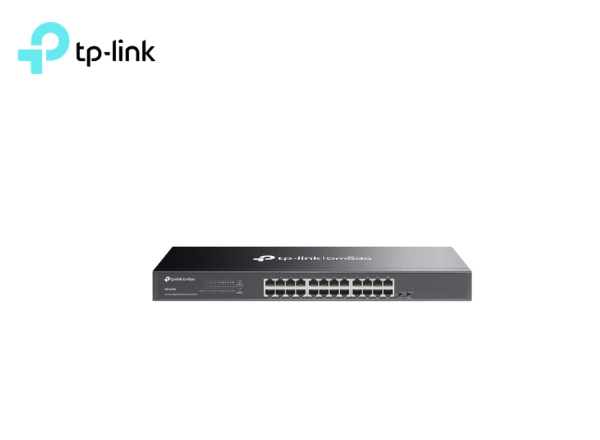

Description Model: DS1024G TP-Link DS1024G Omada 24-Port Gigabit Switch Overview 24 10/100/1000Mbps RJ45 ports Supports MAC address self-learning and auto MDI/MDIX Standard 19-inch rack-mountable steel case Isolation Mode allows one-click client traffic separation for higher security and performance Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping Plug and Play. No configuration or central management required.* Specifications HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x Interface 24× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) Fan Quantity Fanless Physical Security Lock Yes Power Supply 100-240VAC, 50/60Hz Dimensions ( W x D x H ) 17.3 × 5.5 × 1.7 in (440 × 140 × 44 mm) Mounting Rack Mountable Max. Power Consumption 13.62W Max. Heat Dissipation 46.44BTU/h PERFORMANCE Switching Capacity 48Gbps Packet Forwarding Rate 35.7Mpps MAC Address Table 8K Jumbo Frame 10KB SOFTWARE FEATURES Advanced Features • Isolation Mode: Ports 1-22 • Loop Prevention: Ports 1-24 • 802.1P/DSCP QoS • Green Ethernet technology Transmission Method Store and Forward OTHERS Certification FCC, CE, RoHS Package Content • DS1024G • Power Cord • Installation Guide • Rackmount Kits • Rubber Feet Environment • Operating Temperature: 0℃~40℃ (32℉~104℉); • Storage Temperature: -40℃~70℃ (-40℉~158℉); • Operating Humidity: 10%~90% non-condensing; • Storage Humidity: 5%~90% non-condensing Related
