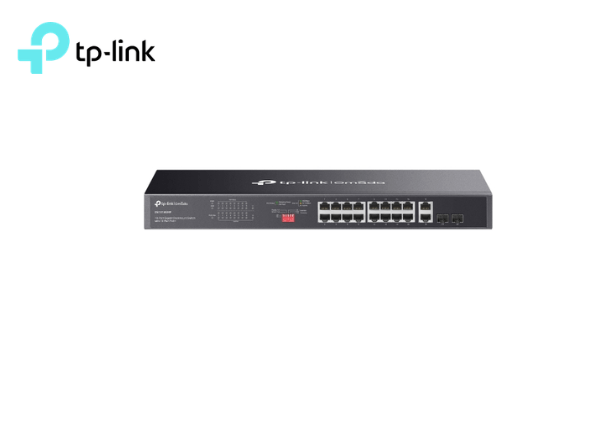

Description Model: DS1018GMP TP-Link DS1018GMP Omada 18-Port Gigabit Rackmount Switch with 16-Port PoE Overview 16× Gigabit PoE RJ45 ports and 2× Combo Gigabit SFP slots High PoE power budget with up to 30 W for each PoE port and 250 W* for all PoE ports Working with IEEE 802.3af/at compliant PDs Up to 250m data and power transmitting range under Extend Mode** Priority mode for ports 1–4 to guarantees the quality of sensitive applications like video monitor Isolation Mode allows one-click client traffic separation for higher security and performance PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices Plug and Play. No configuration or central management required. Specifications HARDWARE FEATURES Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z, IEEE 802.1p Interface • 16× 10/100/1000 Mbps PoE RJ45 ports • 2× Combo Gigabit SFP slots Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF Fan Quantity 2 Physical Security Lock Yes Power Supply 100–240 VAC, 50/60 Hz PoE Ports (RJ45) • Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 250 W Dimensions ( W x D x H ) 17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm) Mounting Rack Mountable Max. Power Consumption • 19 W (220/50 Hz. no PD connected) • 293.34 W (220/50 Hz. with 250 W PD connected) Max. Heat Dissipation • 64.79 BTU/h (no PD connected) • 1000.29 BTU/h (with 250 W PD connected) PERFORMANCE Switching Capacity 36 Gbps Packet Forwarding Rate 26.78 Mbps MAC Address Table 8K Packet Buffer Memory 4.1 Mbit Advanced Features • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode: Ports 1–4** • Priority Mode: Ports 1–4 • Isolation Mode: Ports 1-8/9-16 • PoE Auto Recovery: Ports 1-16 • Mac Address Auto-Learning and Auto-Aging • 802.1p/DSCP QoS • IEEE802.3x Flow Control Jumbo Frame 10 KB OTHERS Certification CE, FCC, RoHS Package Content • DS1018GMP • Installation Guide • Power Cord • Rackmount Kit • Rubber Feet Environment • Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing Related
